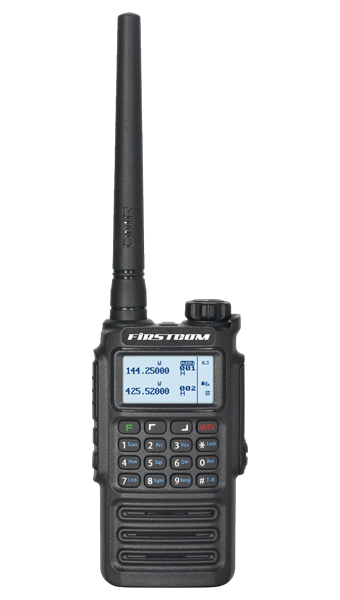

FC-28R
Hyper Performance
VHF/UHF FM TRANSCEIVER
・Outstanding Proof Ability
・IP68
・Super Thin
・Full Dot LCD
・Full Feature equipped
spec
| General | FC-28R |
|---|---|
| Frequency Range | 136-174MHz / 400-480MHz |
| Memory Channels | 128x2 |
| Battery Capacity | 1800mAh |
| Dimensions | 57 x 110 x 33mm |
| Receiver | |
|---|---|
| Sensitivity (12dB SINAD) | 0.18μV |
| Adjacent Channel Selectivity | 65dB |
| Intermodulation | 60dB |
| Audio Output`<5% Distortion | 700mW |
| Transmitter | |
|---|---|
| Output Power | 5W / 1W |
| Max. Frequency Deviation | ±5kHz/±2.5kHz |
| Adjacent Channel Power | ≦-65dB/≦-60dB |
| Spurious and Harmonics | <-60dB |
Catalog Download
A4 size, double-sided PDF.Click on the image to view.
Customer Reviews
[ earphone microphone ]
Watch Optional Accessories[ FPG-23MM ] review from Indonesia.
Optional Accessories
We have excellent earphone microphones that can be used with the product. It is more convenient to use them together.
FPG-22MM
Inner ear type
FPG-23MM
Ear hanging type
FPG-25MM
Speaker-phone type
FPG-26MM
Ear hanging Speaker type
