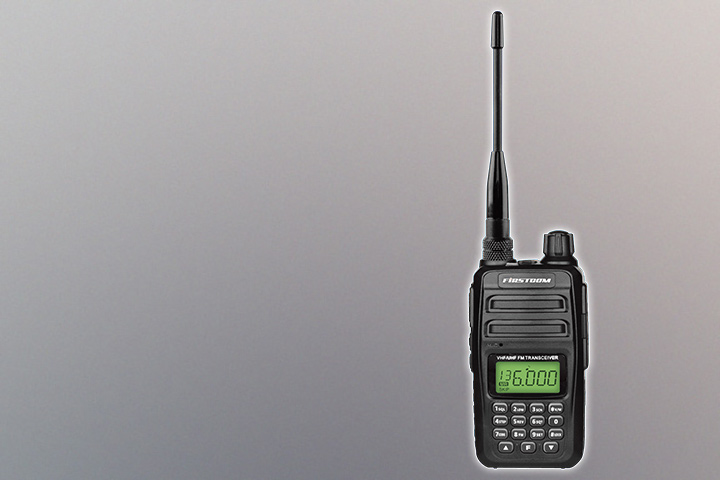

 FC-21R |

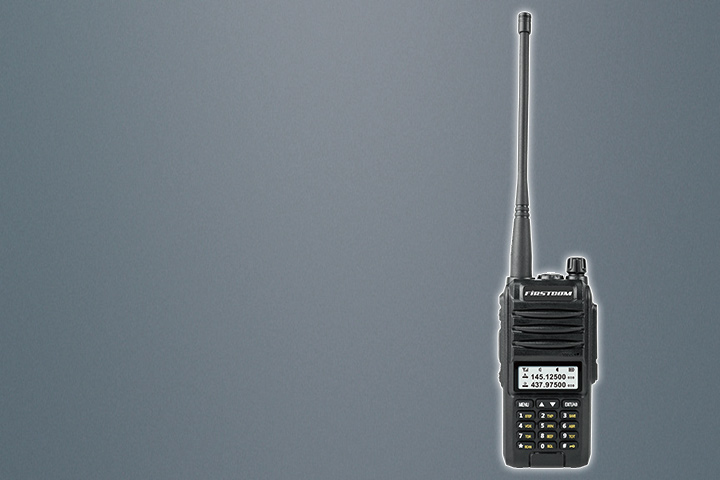

 FC-136R |

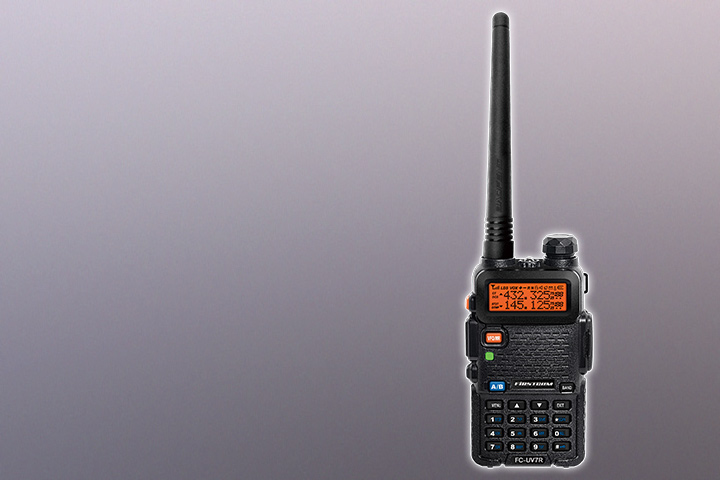

 FC-UV7R |

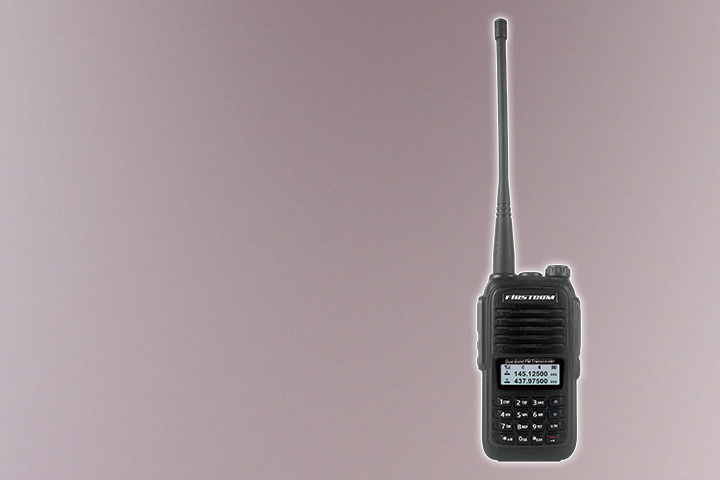

 FC-77R |

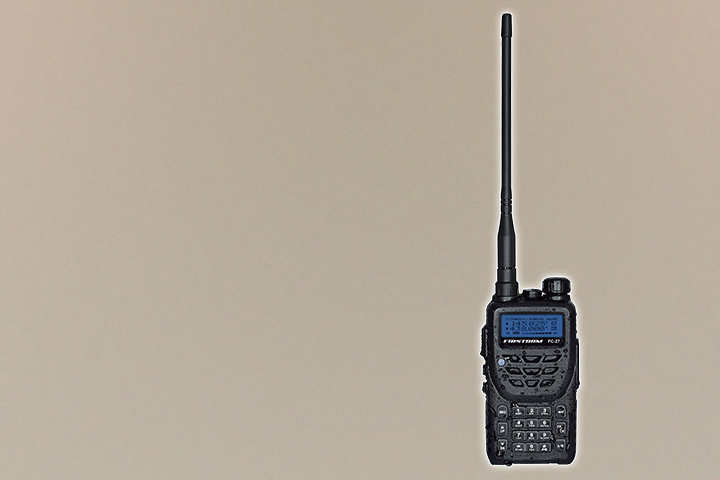

 FC-27R |

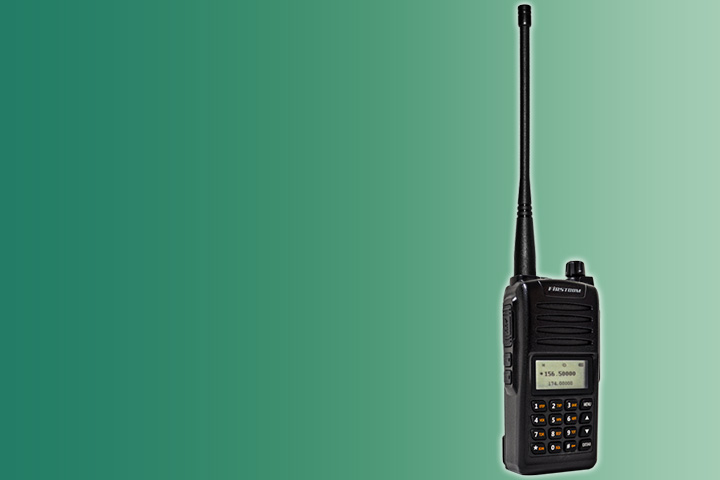

 FC-220R |

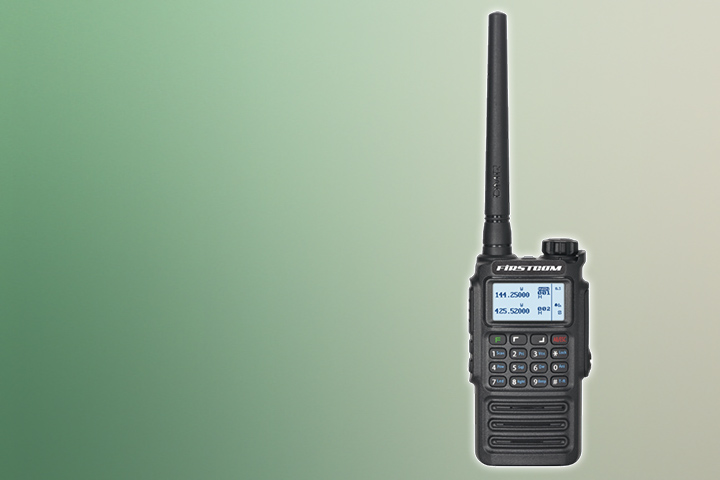

 FC-28R |

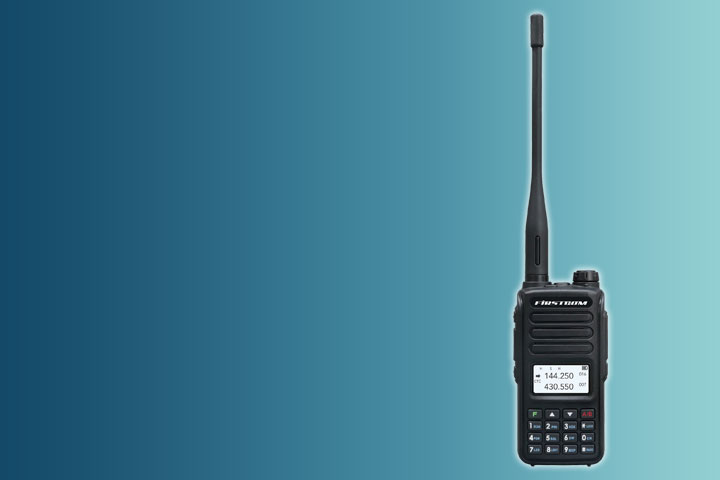

 FC-2100R |

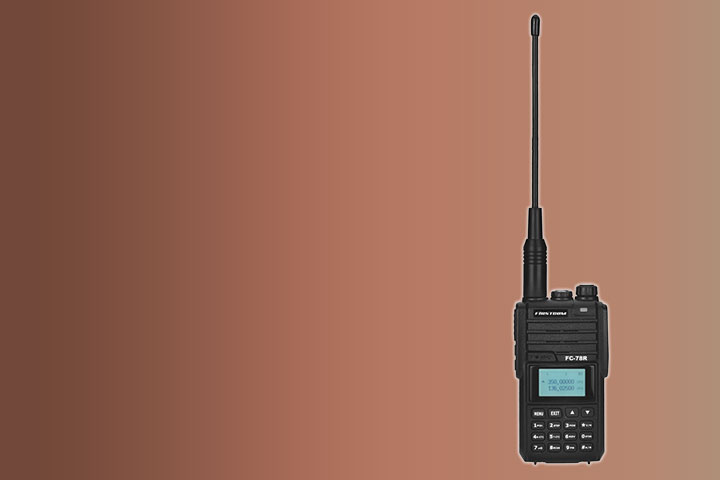

 FC-78R |

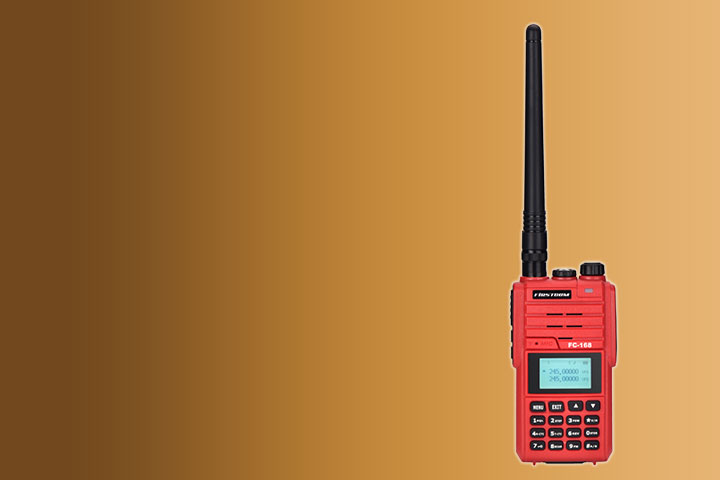

 FC-168 |

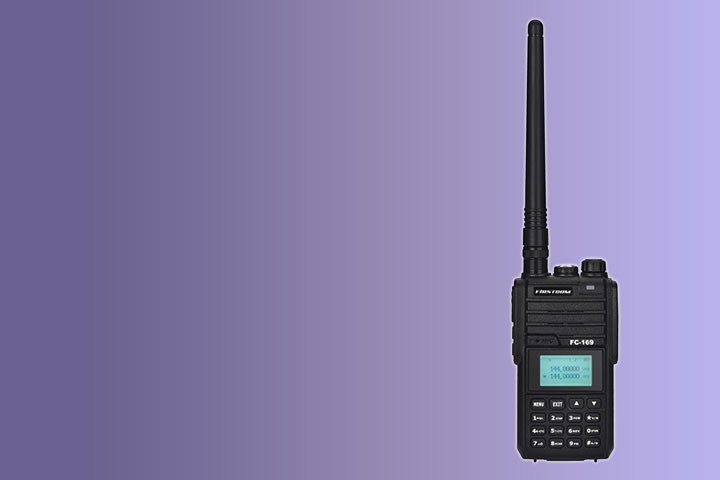

 FC-169 |
|
General |
|
|
|
|
|
|
|
|
|
|
|
|
|
Frequency Range |
136-174MHz |
136-174MHz |
136-174MHz |
136-174MHz |
136-174MHz |
136-174MHz |
136-174MHz |
136-174MHz |
136-174MHz |
245-247MHz |
144-147MHz |
|
|
Memory |
199 |
128 |
128 |
128 |
128 |
128 |
128 x 2 |
200 |
160 |
160 |
160 |
|
|
Channel |
2.5/5/6.25/ |
2.5/5/6.25/ |
2.5/5/6.25/ |
2.5/5/6.25/ |
12.5/25kHz |
12.5/25kHz |
12.5/25kHz |
12.5/25kHz |
12.5/25kHz |
12.5kHz |
12.5kHz |
|
Frequency |
±2.5ppm |
±2.5ppm |
±2.5ppm |
±2.5ppm |
±2.5ppm |
±2.5ppm |
±2.5ppm |
±2.5ppm |
±2.5ppm |
±2.5ppm |
±2.5ppm |
|
Antenna |
50Ω |
50Ω |
50Ω |
50Ω |
50Ω |
50Ω |
50Ω |
50Ω |
50Ω |
50Ω |
50Ω |
|
Battery |
1200mAh |
1800mAh |
1800mAh |
1800mAh |
1800mAh |
1800mAh |
1800mAh |
3200mAh |
1600mAh |
1800mAh |
1800mAh |
|
Battery |
7.4V DC |
7.4V DC |
7.4V DC |
7.4V DC |
7.4V DC |
7.4V DC |
7.4V DC |
7.4V DC |
7.4V DC |
7.4V DC |
7.4V DC |
|
Dimensions |
58x110x32 |
65x133x41.5 |
58x110x32 |
62x118x39 |
57x110x33 |
60x116x41.5 |
57x110x33 |
56x121x42 |
53x103x32 |
57x103x32 |
57x103x32 |
|
Weight |
100g |
279g |
130g |
236g |
195g |
149g |
210g |
268g |
191g |
191g |
191g |
|
Receiver |
FC-21R |
FC-136R |
FC-UV7R |
FC-77R |
FC-27R |
FC-220R |
FC-28R |
FC-2100R |
FC-78R |
FC-168 |
FC-169 |
|
Sensitivity |
0.18μV |
0.2μV |
0.2μV |
0.2μV |
0.15μV |
0.15μV |
-122dBm |
-122dBm |
-122dBm |
-122dBm |
-122dBm |
|
Adjacent Channel Selectivity |
65dB |
60dB |
60dB |
60dB |
≥65dB |
≥65dB |
≥65dB |
≥65dB |
≥65dB |
≥65dB |
≥65dB |
|
Intermodulation |
60dB |
60dB |
60dB |
60dB |
60dB |
60dB |
60dB |
60dB |
60dB |
60dB |
60dB |
|
Spurious |
70dB |
65dB/60dB |
65dB/60dB |
65dB/60dB |
≦60dB |
≦60dB |
65dB/60dB |
65dB/60dB |
65dB/60dB |
60dB |
60dB |
|
Audio Output `<5% Distortion |
1000mW |
1W |
1W |
1W |
500mW |
1W |
700mW |
500mW |
1W |
1W |
1W |
|
Transmitter |
FC-21R |
FC-136R |
FC-UV7R |
FC-77R |
FC-27R |
FC-220R |
FC-28R |
FC-2100R |
FC-78R |
FC-168 |
FC-169 |
|
Output Power |
5W/1W |
5W/1W |
5W/1W |
5W/1W |
5W/1W |
5W/1W |
5W/1W |
10W/5W |
5W |
5W |
5W |
|
Max. Frequency Deviation |
±5kHz |
±5kHz/ |
±5kHz/ |
±5kHz/ |
±5kHz/ |
±5kHz/ |
±5kHz/ |
±5kHz/ |
±5kHz/ |
±2.5kHz |
±2.5kHz |
|
|
Adjacent Channel Power |
60dB |
≦-65dB/ |
≦-65dB/ |
≦-65dB/ |
≦-65dB/ |
≦-65dB/ |
≦-65dB/ |
≦-65dB/ |
≦-65dB/ |
≦-60dB |
≦-60dB |
|
|
Spurious and Harmonics |
<-60dB |
<-60dB |
<-60dB |
<-60dB |
<-60dB |
<-60dB |
<-60dB |
<-60dB |
<-60dB |
<-60dB |
<-60dB |
・Double Power Tubes
・Dot Matrix Large LCD
・Heavy Duty Use
・High Capacity Battery
・Full Feature Equipped
・EASY USER INTERFACE
・DUAL LINE OPERATION
・FULL DOT DISPLAY
・COMMERCIAL FM RADIO BAND
・FULL FEATURE EQUIPPED
・Ultra Compact Design
・5W TX
・High Power Voice
・Robust Body
・High Cost Performance
・Dual Line Display
・Dot Matrix Display
・High Power 5W
・Standard Industrial Design
・Reliable Performance
・Dot matrix Display
・Dual Line Dual Standby
・Full Feature equipped
・Round Concept Design
・Good Grip Feeling
・Dual Line Display
・Dot Matrix Display
・Full Feature equipped
・Pioneer of Waterproof Radio
・IP66 Proof Ability
・Dual line, Dual Standby
・Dot Matrix Display
・Full Feature equipped
・Outstanding Proof Ability
・IP68
・Super Thin
・Full Dot LCD
・Full Feature equipped

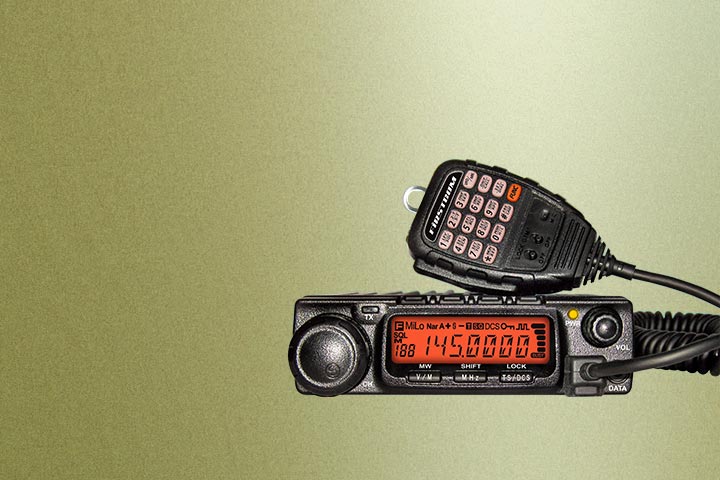

・Frequency Range : 136-174MHz
・200 Programmed Channel
・CTCSS/DCS/2TONE/5TONE
・DTMF-ANI/5TONE-ANI
・Voice Compander
・3 Color LCD Display

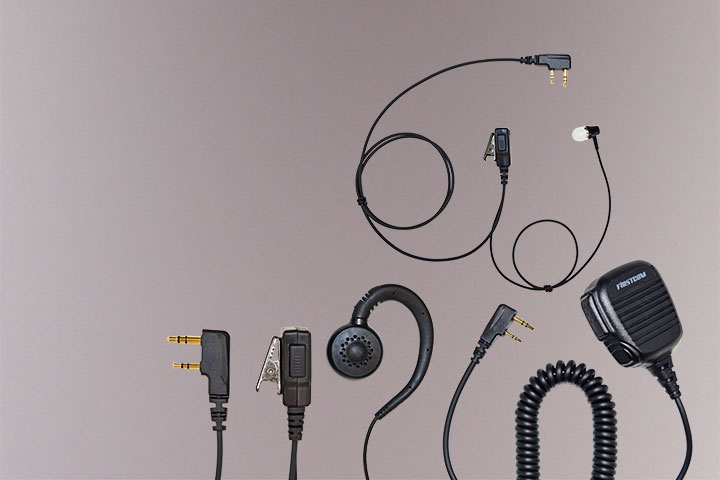

・FPG-22K : Inner ear type
・FPG-23K : Ear hanging type
・FPG-24K : Silicone earbud type
・FPG-25K : Speaker-phone type
・FPG-26K : Ear hanging Speaker type
・These are compatible with KENWOOD.
