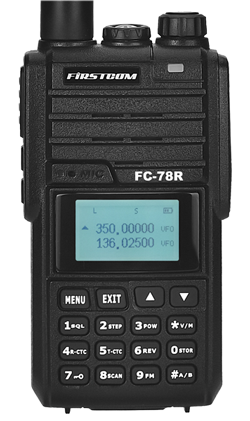

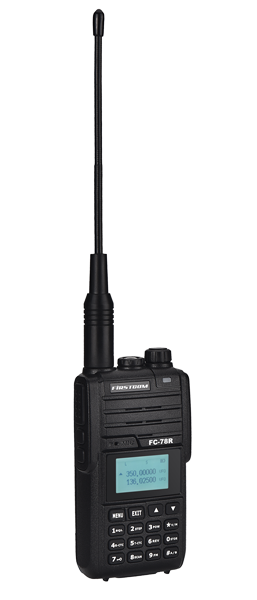

FC-78R
VHF/UHF TRANSCEIVER
・Robust Body
・IP66 Proof Ability
・Full Feature equipped
spec
| General | FC-78R |
|---|---|
| Frequency Range | 136-174MHz / 350-400MHz |
| Memory Channels | 160 |
| Channel Spacing | 12.5/25kHz |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Battery Capacity | 1600mAh |
|---|---|
| Battery Voltage | 7.4V DC ±10% |
| Dimensions | 53 x 103 x 32mm |
| Weight with battery | 191g |
| Water Dust Proof | IP66 |
| Receiver | |
|---|---|
| Sensitivity (12dB SINAD) | -122dBm |
| Adjacent Channel Selectivity | ≥65dB |
| Intermodulation | 60dB |
| Spurious Rejection | 65dB/60dB |
| Audio Output `<5% Distortion |
1W |
| Transmitter | |
|---|---|
| Output Power | 5W |
| Max. Frequency Deviation | ±5kHz/±2.5kHz |
| Adjacent Channel Power | ≦-65dB/≦-60dB |
| Spurious and Harmonics | <-60dB |
