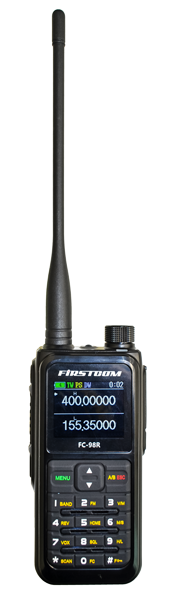

FC-98R
VHF FM TRANSCEIVER
・HI POWER 10W
・NOISE CANCELLATION
・COLOR DISPLAY
・DOT MARTIX LCD
・Full Feature equipped
spec
| General | FC-98R |
|---|---|
| Frequency Range | 136-174MHz / 400-470MHz |
| Memory Channels | 255 |
| Channel Spacing | 12.5/25kHz |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Battery Capacity | 2600mAh |
|---|---|
| Battery Voltage | 7.4V DC ±10% |
| Dimensions | 56 x 118 x 40mm |
| Weight with battery | 292g |
| Water Dust Proof | ─ |
| Receiver | |
|---|---|
| Sensitivity (12dB SINAD) | -120dBm |
| Adjacent Channel Selectivity | 65dB |
| Intermodulation | 65dB |
| Spurious Rejection | 70dB/65dB |
| Audio Output `<5% Distortion |
1W |
| Transmitter | |
|---|---|
| Output Power | 10W/5W/1W |
| Max. Frequency Deviation | ±5kHz/±2.5kHz |
| Adjacent Channel Power | ≦-70dB/≦-65dB |
| Spurious and Harmonics | -60dB |

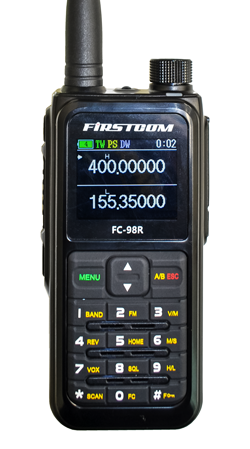

Catalog Download
A4 size, double-sided PDF.Click on the image to view.
