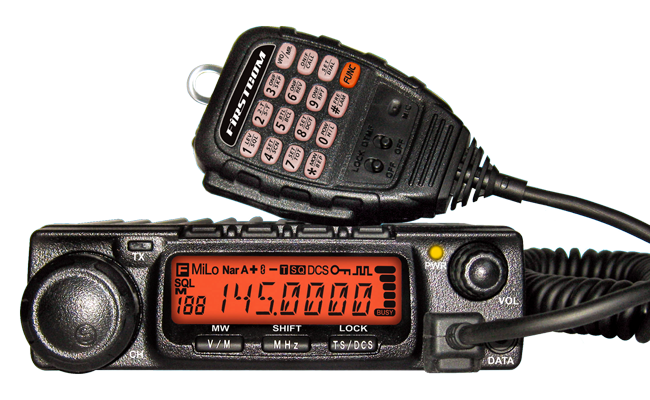

FR-188
Mobile Radio
VHF/UHF FM TRANSCEIVER
spec
・Frequency Range : 136～174MHz
・200 Programmed memory Channel.
・Memory Channel sighn with useful character and number.
・in-built CTCSS / DCS / DTMF / 2TONE / 5TONE Encode and Decode function.
・Voice encrypton (Optional).
・Voice Compander.
・Ani Identification (Celler ID Display) & PTT-ID.
・Remote kill / Stun / Activation. Theft alarm function.
・3 Color LCD Display.
| General | FR-188 |
|---|---|
| Frequency Range | VHF1: 136～174MHz / UHF1: 400～475MHz VHF2: 245～245.9875MHz(220～260MHz) |
| Numbur of Channels | 200 Channels |
| Channel Spacing | 25KHz(Wide Band) / 20KHz(Mideum Band) / 12.5KHz(Narrow Band) |
| Phase-locked Step | 5, 6.25, 8.33, 10, 12.5, 20, 25, 30, 50KHz |
| Operating Voltage | DC13.8 ± V15% (11.7V～15.8V) |
| Antenna Impedance | 50Ω |
| Frequency Stability | ± 2.5 ppm |
| Operating Temperature | -20 ～ +60℃ |
| Dimensions | 145(W) x 47(H) x 190(D)mm |
| Weight | 1.2kg |
| Receiver | [ETSI EN 300 086 standard testing] | |
|---|---|---|
| Wide Band | Narrow Band | |
| Sensitivilty (12dB Sinad) |
≦0.25μV | ≦0.35μV |
| Adjacent Channel Selectivity |
≧70dB | ≧60dB |
| Inter- modulation |
≧65dB | ≧60dB |
| Spurious Rejection |
≧70dB | ≧70dB |
| Audio Response |
+1～-3dB (0.3～3KHz) | +1～-3dB (0.3～2.55KHz) |
| Hum & Noise | ≧45dB | ≧40dB |
| Audio Distortion |
≦5% | |
| Audio Power Output | >2W (8Ω, 10%) | |
| Transmitter | [ETSI EN 300 086 standard testing] | |
|---|---|---|
| Power Output | 60W / 25W / 10W (VHF) | 40W / 25W / 10W (UHF) |
| Modulation | 16KΦF3E | 11KΦF3E |
| Sensitivilty (12dB Sinad) |
≦0.25μV | ≦0.35μV |
| Adjacent Channel Selectivity |
≧70dB | ≧60dB |
| Hum & Noise | ≧40dB | ≧36dB |
| Spurious Emission |
≧60dB | ≧60dB |
| Audio Response |
+1～-3dB (0.3～3KHz) | +1～-3dB (0.3～2.55KHz) |
| Audio Distortion |
≦5% | |
Options
We have excellent earphone microphones that can be used with this product.It is more convenient to use them together.
FPG-22K
Inner ear type
FPG-23K
Ear hanging type
FPG-24K
Silicone earbud type
FPG-25K
Speaker-phone type
FPG-26K
Ear hanging Speaker type
