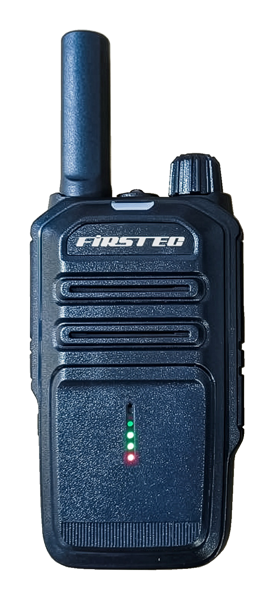

FT-40X
VHF FM TRANSCEIVER
・TypeC Charge
・VOX
・Battery Status LED
・Wireless Clone Function
spec
| General | FT-40X |
|---|---|
| Frequency Range | 400-480MHz |
| Memory Channels | 16 |
| Channel Spacing | W/N |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Battery Capacity | 1000mAh |
|---|---|
| Battery Voltage | 3.7V DC |
| Dimensions | 54 x 108 x 26mm |
| Weight with battery | 100g |
| Water Dust Proof | ─ |
| Receiver | |
|---|---|
| Sensitivity (12dB SINAD) | -120dBm |
| Adjacent Channel Selectivity | 55dB |
| Intermodulation | 55dB |
| Spurious Rejection | 55dB |
| Audio Output `<5% Distortion |
500mW |
| Transmitter | |
|---|---|
| Output Power | 2W |
| Max. Frequency Deviation | ±5kHz |
| Adjacent Channel Power | -65dB |
| Spurious and Harmonics | -60dB |
