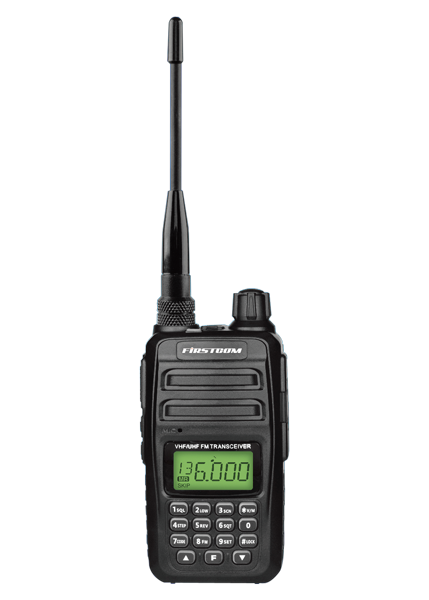

FC-21R
Ultra Compact
VHF FM TRANSCEIVER
・Ultra Compact Design
・5W TX
・High Power Voice
spec
| General | FC-21R |
|---|---|
| Frequency Range | 136-174MHz |
| Memory Channels | 199 |
| Battery Capacity | 1200mAh |
| Dimensions | 45x85x25mm |
| Receiver | |
|---|---|
| Sensitivity (12dB SINAD) | 0.18μV |
| Adjacent Channel Selectivity | 65dB |
| Intermodulation | 60dB |
| Audio Output`<5% Distortion | 1W |
| Transmitter | |
|---|---|
| Output Power | 5W / 1W |
| Max. Frequency Deviation | ±5kHz/±2.5kHz |
| Adjacent Channel Power | 60dB |
| Spurious and Harmonics | <-60dB |
Catalog Download
A4 size, single-page PDF.Click on the image to view.
